SPECS OF MODIFIED 7/8″ JAW SLIDE WITH BOLT
- Product Number: CAMBIA-66100-M
- Tube Size: 7/8”(22.2mm)
- Pin Size: 1/4”-20(6.3mm-20)*
- Weight: 100 g (0.22lbs)
- Material: 316 Stainless Steel
*Pin and screws included.

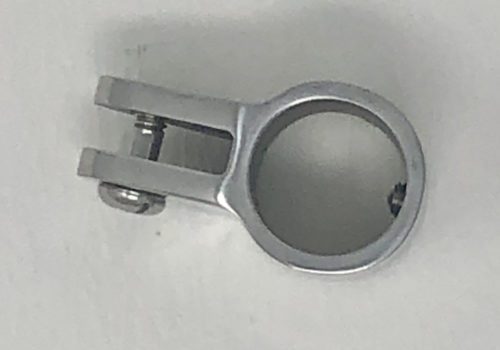

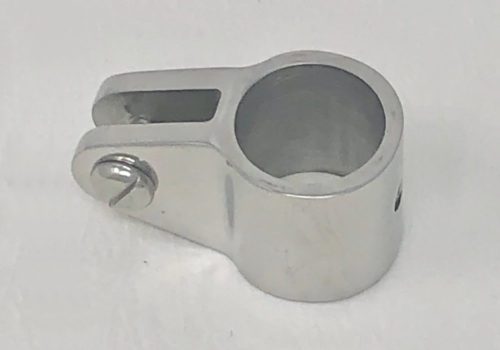

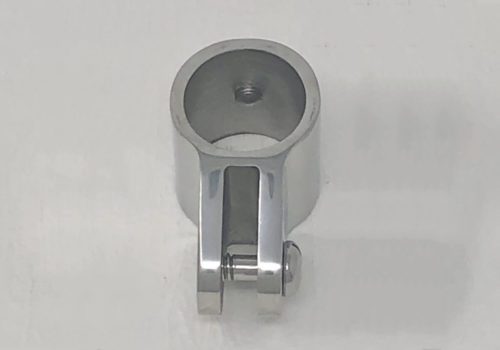

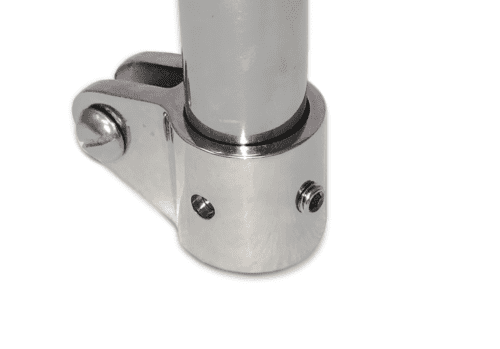

PRODUCT OVERVIEW OF MODIFIED 7/8″ JAW SLIDE WITH BOLT
This jaw slide is designed for 7/8″ O.D. tubing and is completed with a 1/4-28 stainless steel set screw for installation purposes. Weighing a total of 100 grams (excluding packaging), there also includes a 1/4”-20 (6.3mm-20) stainless steel pin. Lastly, this jaw slide is investment cast 316 Stainless Steel mirror finish, being extremely durable for long-term use without corrosion.
CAMBIA-66100-M differs from CAMBIA-66100 by having an extra rivet hole on the lateral surface for increased durability.
